[Introduction]: Using 250 square meter ,Lean management strategy in front section and back section, People, machine, material optimization customized equipment fixture tool ,Mid-Section automation,
[production capacity .]: 11 people 60 pairs , finished 1200 pairs / ten hour double
[Assemble Space]: 250 square meter

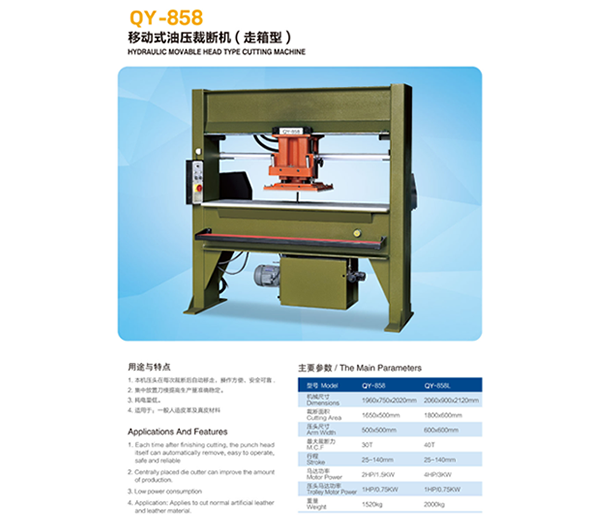

Purpose and characteristics 1. The pressure head of this machine automatically moves away after each cutting, making it easy to operate, safe and reliable 2. Centralize the placement of knife molds to improve production accuracy and stability. 3. Low power consumption. 4. Applicable to: general artificial leather and genuine leather materials
主要参数/The Main Parameters
型号 ModelDimensions: 1960x750x2020mm
裁断面积Cutting Area: 1650x500mm
压头尺寸Amm Width: 500x500mm
最大裁断力M.C.F:30T
行程Stroke：25-140mm
马达功率Motor Power： 2HP/1.5KW
压头马达功率Trolley Motor Power：1HP/0.75KW
重量Weight：1520kg
